Microsoft Defender for Cloud
Lab scenario
You have been asked to create a proof of concept of Microsoft Defender for Cloud-based environment. Specifically, you want to:
Configure Microsoft Defender for Cloud to monitor a virtual machine.
Review Microsoft Defender for Cloud recommendations for the virtual machine.
Implement recommendations for guest configuration and Just in time VM access.
Review how the Secure Score can be used to determine progress toward creating a more secure infrastructure.
For all the resources in this lab, we are using the East US region. Verify with your instructor this is the region to use for class.
Lab objectives
In this lab, you will complete the following exercise:
Exercise 1: Implement Microsoft Defender for Cloud

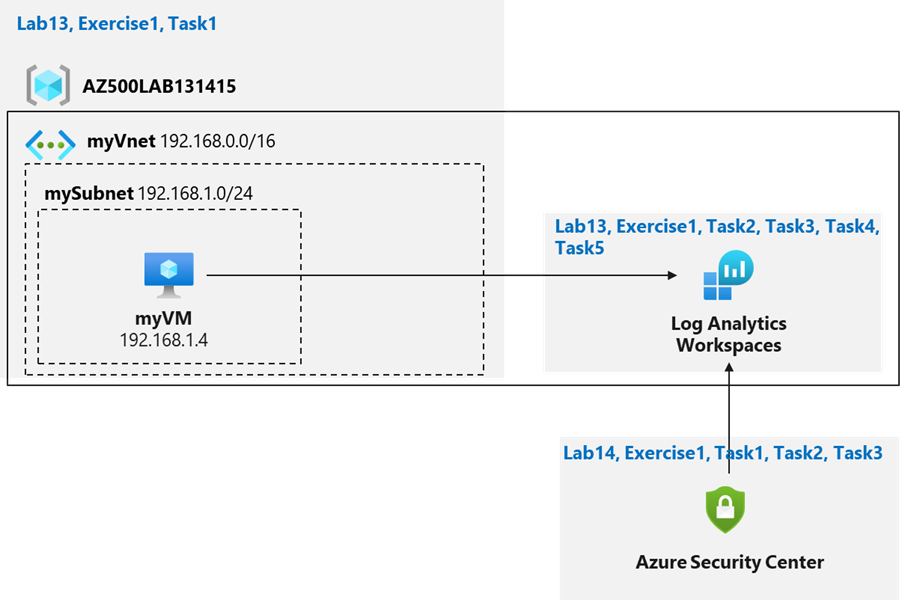

Microsoft Defender for Cloud diagram
Exercise 1: Implement Microsoft Defender for Cloud
In this exercise, you will complete the following tasks:
Task 1: Configure Microsoft Defender for Cloud
Task 2: Review the Microsoft Defender for Cloud recommendations
Task 1: Configure Microsoft Defender for Cloud
In this task, you will on-board and configure Microsoft Defender for Cloud.
Sign-in to the Azure portal
https://portal.azure.com/.Note: Sign in to the Azure portal using an account that has the Owner or Contributor role in the Azure subscription you are using for this lab.
In the Azure portal, in the Search resources, services, and docs text box at the top of the Azure portal page, type Microsoft Defender for Cloud and press the Enter key.
If it hasn't been completed previously, on the Microsoft Defender for Cloud | Getting started blade, click Upgrade.
If it hasn't been completed previously, on the Microsoft Defender for Cloud | Getting started blade, in the Install agents tab, scroll down and click Install agents.
On the Microsoft Defender for Cloud | Getting started blade, on the Upgrade tab >> in the Select workspaces with enhanced security features section >> turn on the Microsoft Defender plan by selecting your Log Analytics Workspace.
Note: Review all the features that are available as part of Microsoft Defender plans.
Navigate to Microsoft Defender for Cloud and click Environment Settings under the Management settings, in the vertical menu bar on the left side.
On the Microsoft Defender for Cloud | Environment Settings blade, click the relevant subscription.
On the Defender plans blade, select Enable all Microsoft Defender for Cloud Plans and click Save.
On the Settings | Defender Plans blade, in the verticle menu on the left side, click Auto provisioning.
On the Settings | Auto provisioning blade, make sure that Auto provisioning is set to On for the first item Log Analytics agent for Azure VMs.
On the Settings | Workflow automation blade, review the available settings.
Note: You can trigger actions based threat detection alerts and Microsoft Defender for Cloud recommendations. You can also configure an action based on Logic apps.
On the Add workflow automation blade, review the avilable settings.
Note: Microsoft Defender for Cloud provides many insights into virtual machines including system update status, OS security configurations, and endpoint protection.
On the Add workflow automation blade, click Cancel.
Navigate back to the Microsoft Defender for Cloud | Environment Settings blade, expand your subscription, and click the entry representing the Log Analytics workspace you created in the previous lab.
On the Settings | Defender plans blade, ensure that Enable all Microsoft Defender for Cloud plans is selected and click Save.
Select Data collection from the Microsoft Defender for Cloud | Settings blade. Select All Events and Save.
Task 2: Review the Microsoft Defender for Cloud recommendation
In this task, you will review the Microsoft Defender for Cloud recommendations.
In the Azure portal, navigate back to the Microsoft Defender for Cloud | Overview blade.
On the Microsoft Defender for Cloud | Overview blade, review the Secure Score tile.
Note: Record the current score if it is available.
Navigate back to the Microsoft Defender for Cloud | Overview blade, select Assessed resources.
On the Inventory blade, select the myVM entry.
Note: You might have to wait a few minutes and refresh the browser page for the entry to appear.
On the Resource health blade, on the Recommendations tab, review the list of recommendations for myVM.
